700-800kg/hr Capacity Twin Screw Feeder , Conical Double Screw Force Feeder

CTS 90 Conical Twin Screw Force Feeder For High Filler with Ouput of 600kg/hr

We are professional supplier of conical twin screw force feeder, we have different model and capacity available based on your raw materials& capacity requirement.

Our conical double  screw force feeder is continuous feeding and self cleaning. The bulk material will be transferred  to the extruder by intermeshing screw. So there is almost no material back flow issue. The feeding rate is controllable by frequency inverter, you can adjust the rotation speed based on your extruder capacity and running condition very easily.

Main Application:

Rubber granulating, coloring plastic modification,and functional masterbatch,  rubber plastic compounding and high filler , etc.

Features:

• Kneading, feeding and extrusion parts could be heated by electricity, vapor or oil based on the specific temperature control requirement.
• Higher efficiency: An automatic and continuous turn-key project including co-kneader, lifter, conical twin screw force feeder, extruder, pelletizing, packing system is available
• Co-kneader use four flight synchronous rotor kneading chamber which is high efficient, low energy cost, sufficient plasticizing and even dispersion.
• Conical twin screw force feeder and the extruder speed is controlled by frequency inverter, could be adjusted separately or synchronously
• Feeding system will use the conical twin screw feeder, it could be some mixing function and mainly force feeding the material to the extruder.
• PLC and HIM control, making your operation more easy and automatic

We not only supply the conical twin screw force feeder, but also we can provide you the turn-key project according to your request.We can supply Co-kneader, Bucket lifter, twin screw/single screw extruder, Pelletizing system to the final granules silo and packing system.  You can get one stop purchase.

Specification:

Model: CTS90

Motor power: 7.5kw

Speed control: By frequency inverter Siemens

Double wrist screw: high speed tool steel made

Feeding screw: 38CrMoAlA, Nitride steel

Feeding hopper: 200L

Made of stainless steel

Feeding capacity: 700-800kg/hr

Movable support frame

Forward/backward slide roller for easy connection and disconnection

Service:

Before-sale

Introduce products and applications detain

Recommend suitable solution

Provide with reference in formation

Offer lab for test

During manufacturing

Provide with layout and engineering conditions

Inform the project processing status

Offer other documents

After-sale

Provide with installation ,commissioning and training

Register and record customer information

Offer spare parts

Provide with necessary technical support for new application

Visit customer regularly and correct information

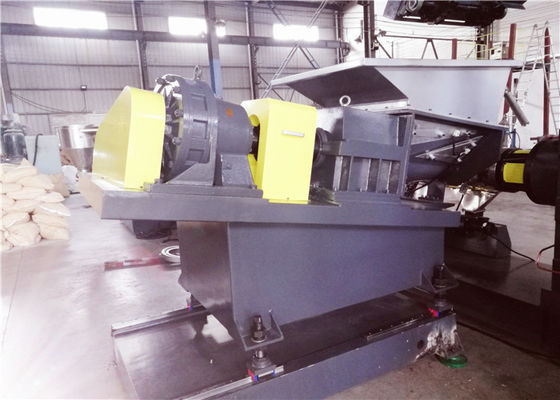

Picutres of the equippment:
