High Output Dual Screw Plastic Extrusion Line with Under Water Pelletizing System
Under Water Pelletizing System
,High Torque Twin Screw Extruder
,L/D 68 Screw Configuration

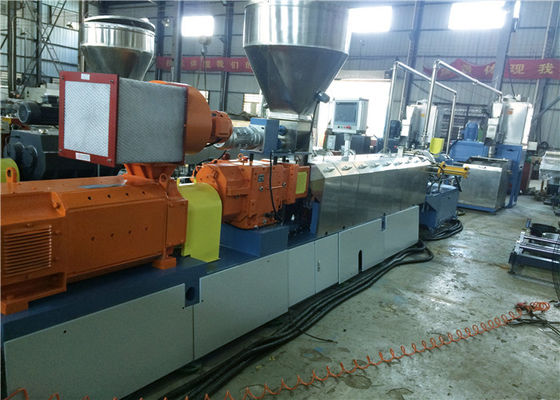

Supper High Torque Twin Screw Extruder with Under Water Pelletizing System
Main Introduction:
Supper High torque twin screw extruder line is our improved product which can compare with European machine.
The gearbox, torque limiter is imported directly from European suppliers.
Motor, electrical parts will use Siemens or ABB.
Barrel with bi-metallic linear inside, made by high accuracy CNC machine
Screw elements is W6Mo5Cr4V2. Made by CNC machine.
Screw and barrel can be imported from European supplier as well.
L/D could be up to 68
Screw speed is up to 1000rpm
Ideal screw configuration for different materials.
Turn-key project is available for you.
Composition of the line:
Gravimetric feeding system
CHT-Max Supper High torque twin screw extruder
Side feeding system
Vacuum pump
Cooling system
Hydraulic screen changer
Melt pump
Under Water pelletizing system
Packing system
Service:
1. Technical communication and professional suggestion based on our rich experience in the past years.
2. Strict quality control during the production, Every parts will be strictly tested before fabrication.
3. Customer profile management, Every order will have a separate profile which includes all the information of the order, including contract, drawing, parts supplier,testing report,etc This will help for the after-sale service.
4. Will dispatch engineer to customer's factory for installation of the machine until it is running stably.
5. Large quantity of standard sparts parts are available.
Application:
Filler masterbatch, Color masterbatch, functional masterbatch
Engineering plastic
Reaction plastic
Grafting plastic
Devolotization
Thermoplastic
| Model | Dia. | L/D | RPM | Drive | Output |
| CHT20-Max | 22 | ~68 | ～800 | ～15 | ~30 |
| CHT30-Max | 30 | ~68 | ～1000 | ～37 | ~100 |
| CHT40-Max | 41 | ~68 | ～1000 | ～90 | ~280 |
| CHT52-Max | 51.4 | ~68 | ～1000 | ～160 | ~700 |
| CHT65-Max | 62.4 | ~68 | ～1000 | ～250 | ~1500 |
| CHT75-Max | 71 | ~68 | ～1000 | ～355 | ~2000 |
| CHT85-Max | 81 | ~68 | ～1000 | ～400 | ~2500 |
| CHT95-Max | 93 | ~68 | ～1000 | ～600 | ~3500 |
| CHT120-Max | 122 | ~68 | ～1000 | ～700 | ~5000 |
| CHT135-Max | 133 | ~68 | ～600 | ～800 | ~6000 |
| CHT160-Max | 158 | ~68 | ～600 | ～1200 | ~10000 |
