Product Details:
Payment & Shipping Terms:
|
| Name: | Lab Extruder | Model: | CHT30-Eco |
|---|---|---|---|
| L/D: | Up To 60 | Drive: | Frequency Inverter |
| Capacity: | 15-30kg/hr | Motor: | 5.5kw |
| High Light: | lab scale twin screw extruder,laboratory twin screw extruder |
||
| No. | Denomination of the delivery | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1.0 | Raw materials dealing units | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1.1 | Volumetric | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Motor power:0.37kw, Feeding mode: by twin screw Material contact parts are made of 304 stainless steel Volume:20L, Capacity: 5-50kg/hr Inverter: Parker |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1.2 | High speed side feeder | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Metering feeder: 0.37kw Inverter: Parker By twin screw Material contact parts are made of 304 stainless steel Hopper volume: 20L Force feeder: 0.75kw Inverter: Parker By twin screw L/D 6 Screw speed: 400rpm Movable support frame |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.0 | CHT30-Eco granulating unit | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.1 | CHT30-Eco twin screw extruder | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Main motor: Siemens AC motor, 11kw； Parker inverter
Power transmission: Safety clutch torque limiter by COWIN
Gearbox: High safety factor design; Latest steel alloy material for gears applied with special heat treatment and manufactured at high precision level; NSK bearings and imported seals applied, Special lubricating system equipped combined with immersing and forcing solutions; Input/output rotary speed:1500/600rpm； Torque:119N.M
Extrusion line: Screw Diameter: 30mm,L/D:52:1； Center Distance: 22 Maximum Screw speed:600rpm； Screw configuration:with modular structure, torque transmission by spline; Screw material: W6Mo5Cr4V2,HRC58-62 Barrel configuration: with modular structure, each one with length of 8L/D ,and the barrels connected together by bolts and pins; Barrel material: 45# base material, with bi-metal linear
Recommended barrels configuration:
No1 barrel with one feeding port for all possible components, No.2 and No.8 with one liquid injection port, No.6 one venting port, That is blocked if necessary. No11 with one vacuum port
Steel base: Welding base with special pads; |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2.2 | Vacuum pump | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Vacuum Pump Mode: Water Ring Vacuum Pump Material Baffle Plate:40Cr； Vacuum Pump Power:0.75 kw； Vacuum Degree:-0.095MPa With Vacuum Gauge and dual Filtering Pot |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.0 | Pelletizing system | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.1 | Die head | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Made of 40Cr.Nitrided steel Number of hole: 3 holes Diameter of hole: 4mm Cast-copper heater With melt pressure sensor and melt temperature sensor |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3.2 | Water bath | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Dimension: 200x1500mm Made of stainless steel With leading rollers Movable support frame With heating exchanger and water pump. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 4.0 | Control cabinet | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 4.1 | Cabinet for extrusion line | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Low-voltage electrics: Siemens Speed regulator:Parker inverter； Solid state relay: Crydom from USA Switch: Siemens Plug connection for cables With safety switch on the cabinet Interlock design Feeder interlock with extruder Over pressure, over load protection Cabinet located under the base frame of extruder |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 4.2 | Siemens PLC and touch screen | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Siemens S7-200 PLC TPK900 Siemens touch screen Installed on the extruder |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

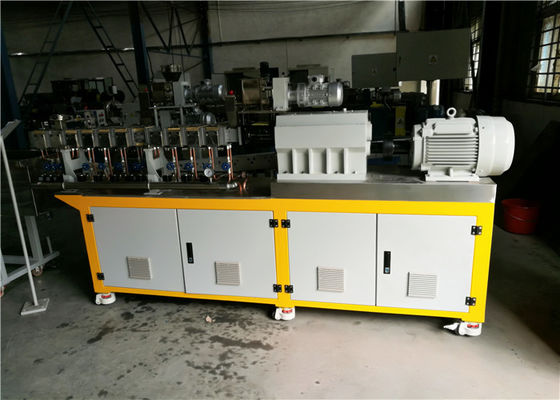

Pictures:
