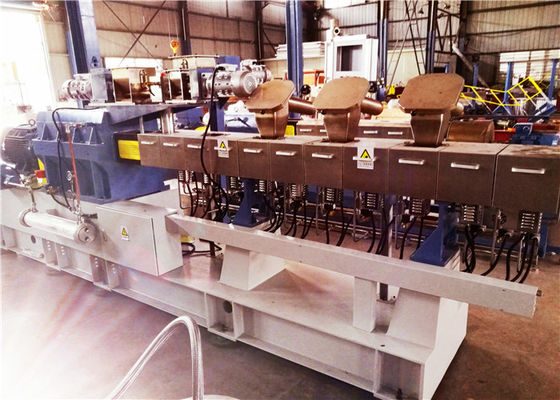

Industrial Two Screw Extruder With Strand Pelletizing System for PET Reycling

Industrial Two Screw Extruder With Strand Pelletizing System for PET Reycling

China Industrial Two Screw Extruder With Strand Pelletizing System for PET Reycling supplier
Industrial Two Screw Extruder With Strand Pelletizing System for PET Reycling supplier Industrial Two Screw Extruder With Strand Pelletizing System for PET Reycling supplier Industrial Two Screw Extruder With Strand Pelletizing System for PET Reycling supplier

Large Image :  Industrial Two Screw Extruder With Strand Pelletizing System for PET Reycling

Product Details:

Place of Origin: CHINA
Certification: ISO9001, CE
Model Number: CHT75-D

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 45-60 working days
Supply Ability: 10sets/month
Detailed Product Description
Name: Twin Screw Extruder Model: CHT75-D
Drive: Frquency Inverter L/D: 40
Motor: 110kw Application: PET Flakes
High Light:

double screw extruder

,

dual screw extruder

75mm Hight Torque Twin Screw Extruder with Strand Pelletizing system PET Reycling



No. Denomination of the delivery Qty.
1.0 Raw materials dealing units
1.1 Auger loader for PET flakes 1set


Motor power: 1.1kw

Horizontal conveying motor: 0.75kw

Volume of storage tank: 500L

Capacity: 100-500kg/hr


1.2 Volumetric feeder 1set


Motor power:1.5kw,

Feeding mode: by twin screw,

Center distance:64

Material contact parts are made of 304 stainless steel

Volume:50L

Capacity:200-600kg/hr

Schneider inerter


2.0 CHT75D granulating unit
2.1 CHT75D twin screw extruder 1set


Main motor:

AC motor, 110KW;SCHNEIDER inverter,with global guarantee

Power transmission:

Safety clutch protection unit;



Gearbox:

High safety factor design;

Latest steel alloy material for gears applied with special heat treatment and manufactured at high precision level;

NSK bearings and imported seals applied,

Special lubricating system equipped combined with immersing and forcing solutions;

Input/output rotary speed:1500/400rpm;

Torque:2x1313N.M



Extrusion line:

Screw Diameter: 71mm,L/D:40:1;

Maximum Screw speed:400rpm;

Screw configuration:with modular structure, torque transmission by spline;

S Screw material: W6Mo5Cr4V2, HRC62-64

Barrel configuration: with modular structure, each one with length of 4L/D,and the barrels connected together by bolts and pins;

Barrel material: #45 steel, with bi-metallic linear inside barrel. HRC62-64





Recommended barrels configuration:




    Industrial Two Screw Extruder With Strand Pelletizing System for PET Reycling   Industrial Two Screw Extruder With Strand Pelletizing System for PET Reycling   Industrial Two Screw Extruder With Strand Pelletizing System for PET Reycling
  Industrial Two Screw Extruder With Strand Pelletizing System for PET Reycling







1 2 3 4 5 6 7 8 9 10 11 12 die



No1 barrel with one feeding port for all possible components,, N0.6 No.8 and No.10with one vacuum port.



Temperature controlling:

Heating system: Cast-copper electric heater, total heating power with approx.50kw (No.1 Section cooled by water);

Cooling system:soft-water cooling system;

Temp. controller:OMRON temperature controller from Japan

Soft-water cooling system including one 0.75kw water-pump, stainless steel water-box (with water Temp. gauge), heat exchanger, imported solenoid valves, water pressure indicator etc.



Steel base:

Welding base with special pads;


2.2 Vacuum system 3sets


Vacuum pump motor: 5.5kw;

Water ring vacuum pump.

vacuum pots with water inside, indicator;

Vacuum degree:Max. -0.095Mpa


2.3 Hydraulic screen changer 1set


Structure Mode: Plate type .

Driving Mode:Hydraulic

Action Time: <1S;

Driving Mode: Hydraulic Station

The hydraulic station includes: Driving Oil Pump1.5kw,

Highest pressure20Mpa, with safety valve, accumulator.

The inspection on pressure and temperature: Set one inspection position before the screen and display the melt temperature.

Heating power:4kw, cast-Al heater

Accumulator: 6.3L

Filtering area: 6400 mm^2


3.0 Strand pelletizing line
3.1 Extrusion die plates 1pc


Material:40Cr,with nitrifying heat-treatment;

The strand outgoing hole dia.: 6mm

Stainless steel plate unit for protection equipped;


3.2 Water bath 1set


450mm6000mm

S.S made

Leading roller: Nylon


3.3 Air knife 1set


Motor power:4kw

Double blow and suction crescent type

Two PU leading rollers

Made of stainless steel.


3.4 Pelletizer 1set


Max output: 500kg/hr

No. of strands: 18

Standard pellet: 3x3mm

Cutter dimension: 200x120mm,32 tooth

Effective rotation speed:350-1000rpm

Haul off speed:0-96m/min

Motor power: 5.5kw

Rotated cutter clearance: 0.08-0.12mm

Leading roller: PU

Frequency inverter: Schneider


3.5 Shfiter 1set


Motor Power:2x 0.37kw

Capacity:2001200kg/hr

Discharging Gap: 3, qualified pellets, huge pellets, small pellets

Made of stainless steel


3.6 Air blower and silo


Conveying part:

Motor power for fan: 4kw

Pipe material: stainless steel

Conveying capacity: more than 1000kg/hr

Silo part:

Silo volume:1500L

Material: stainless steel

Disassembly supporter.


4.0 Control cabinet 1set
4.1 Cabinet for extrusion line


1) Meter Controlling System:

a,The temperature controller for the main extruder is OMRON temperature controller from Japan. Solid relay is used for heating and cooling loop. The solenoid valve is imported from Netherland

b,The current displayer is Chang Shuan brand from Taiwan

2) Main Extruder Interlock Protection Function:

a,Main Extruder interlocks with the lubricant pump for the gear box and the fan for the main motor

b,Main extruder interlocks with the feeder, when the extruder stops, the feeder will stop immediately;

c,The main motor has protective functions of over current, under voltage, lack of phases, over heat and block running.

D,There is melt pressure and melt temperature display function on the die, of which the melt pressure interlock with the main extruder to realize the over pressure protection on the die

3) Main breaking switch is joint venture products

4) Small AC contactor is Schneider products

5) New type motor protective air switch is joint venture product;

6) Controlling button and indicating light are Schneider products

7) Uniform rotation speed and frequency indicating gauge

8) The electrical cabinet is designed and produced according to the standard of SIEMENS which has a wider space and is good for ventilation and heat dispersion as well as examination and repairing

9) All the elements have passed the CE certification





Industrial Two Screw Extruder With Strand Pelletizing System for PET ReyclingIndustrial Two Screw Extruder With Strand Pelletizing System for PET ReyclingIndustrial Two Screw Extruder With Strand Pelletizing System for PET Reycling
