UW 100 series under water pelletizing system for thermoplastic compounding with output 1000kg/hr



General Instroduction:



We focus on the new technology innovation which helps our UW series to be high quality and more competitive



1. Super anti-wear hard alloy cutting blade with constant pneumatic cutting adjusting system to guarantee a longer life

2. Full automatic pneumatic kinfe feeding system to guarantee stable and continuous production, Cutting blade which contacts the die head can be adjusted automatically after abrasion, thus to guarantee the precised contact between cutter and die head, PLC controlling system to meet manual/automatic oerpation, touch screen makes the operation and maintenance easily

3. Based on requirements of customers as well as the charateristic of raw materials. COWIN EXTRUSION super anti-wear hard alloy die plate,cutting blades, high efficient and low energy consumption heading system make the cutting reulst more perfect.

4. Modular Designed Tempered Water Circulating System to meet different requirement from customers. Every part can be installed independently which makes it easier and faster to replace





Speicfications:



1.0 Melt pump


Model: 500CC

Big flange, big outlet designed. Installed under the reactor

Capacity: 800-1200kg/hr

Drive motor: 30kw

Parker inverter from USA

Electric heating: 10kw

Outlet pressure: 35Mpa

Max working temperature: <350C

Pressure sensors installed both at forth and back of pump

With movable support frame for easy clean and maintenance

2.0 Under water pelletizing system
2.1 Adaptor
  Prepare by buyer
2.2 Diverter valve


Diverter valve guides the melt stream either through the screen pack or via a bypass system around the screen pack to a strand die.

The value avoids freezen-off of the die plate holes

Hydraulic station offer the pressure

2.3 Under water pelletizer


The main units include:

- cutting chamber

- die plate with 50 holes, and holes diameter 3.2 mm

- clamping flange

- sight glass

- moveable support cart

- pelletizer motor

- hydraulic unit

- cutter shaft

- cutter hubs

- heating bar 12 x 0.6 KW

- special heat isolation

Pelletizer motor is A.C. motor , 7.5KW, Max speed 3,000 rpm.

The shaft is from NSK Japan

The horizontal feed of cutter shaft and the cutter hub to the die plate is controlled by hand wheel accurately

The tolerances between cutter hub and die plate are compensated automatically

2.4 Tempered water system


he main unit includes:

- stainless steel water tank, 1.5 m3

- heating system, 18 KW, 20-80 ℃

- water pump, 7.5KW

- heat exchanger, size up to 2 m2

2.5 By-pass pipes


pipes is made of stainless steel

-value of bypass and PLC program the time when the cooling water entry into the cutting chamber.

-Sight glass for checking

2.6 Centrifugal dryer


Motor power:11kw

304 stainless steel made

With blower, filter, stainless steel barrate

Volume: 1000L

Capacity: 800-1200kg/hr

3.0 Control cabinet
3.1 Cabinet for under water system


All electric system is installed in a separate cabinet

Inverter for pelletizer: Parker from USA

Inverter for melt pump: Parker from USA

OMRON temperature control module from Japan

Siemens 200CN PLC

Siemens SMART touch screen

Automatic control model







Pictures:

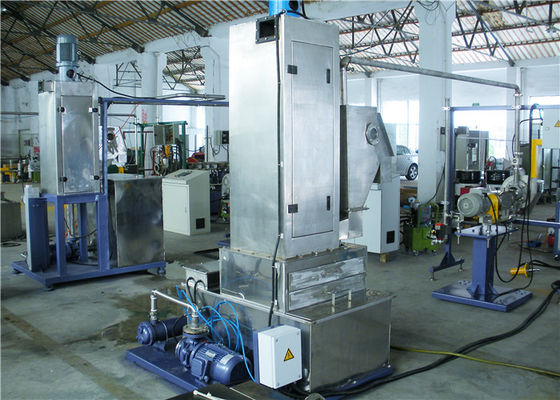

Underwater Granulator System For Thermoplastic Compounding 1000kg/hr
